SPECIFICATIONS

Angle Ranging Scope: ±30°

Application: Golf Sport, Hunting, Survey

Battery Included: Yes

Brand Name: REVASRI

Certification: CE,FCC,RoHS,weee

Focusing Mode: Manual focusing eyepiece

Hign-concerned Chemical: None

Lens Quality: Multilayer coated

Magnification: 6X

Model Number: Golf Rangefinder

Operating Humidity: ≤80%

Origin: Mainland China

Power Source: Rechargeable

Power Type: Rechargeable

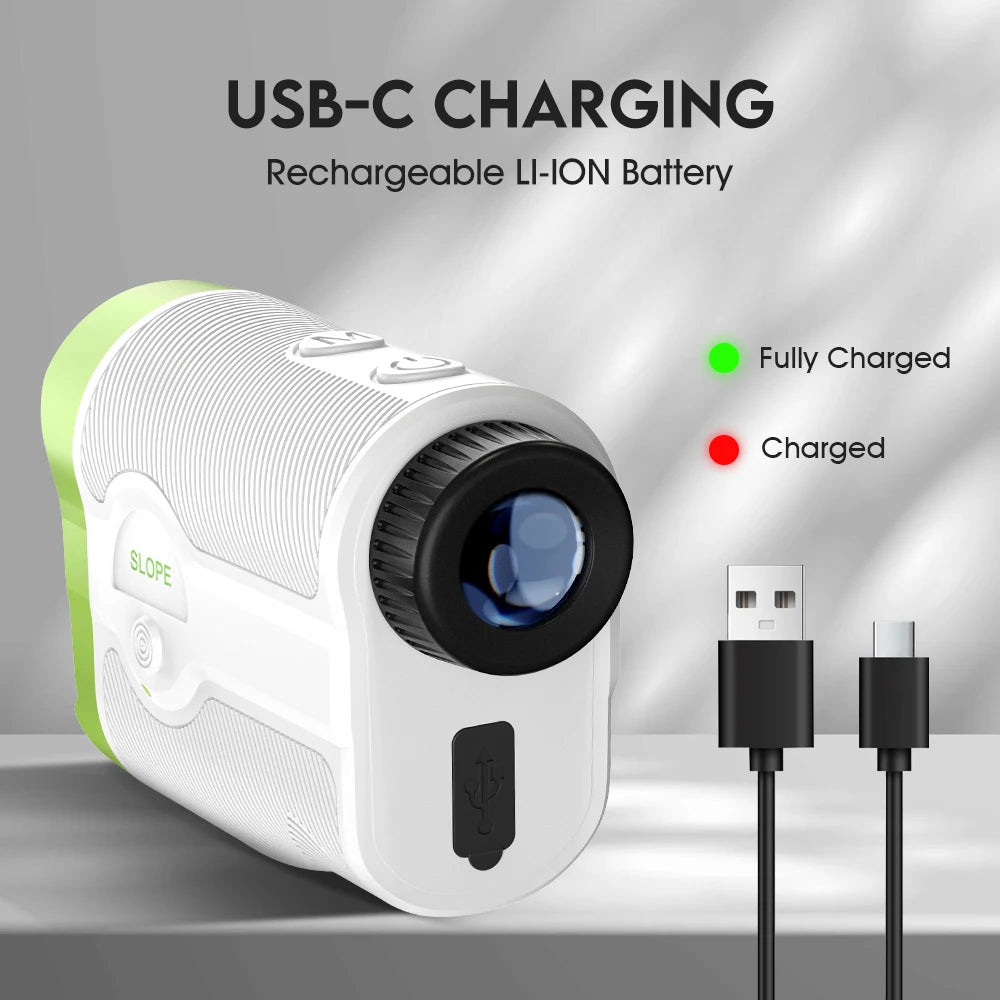

Power supply: TYPE-C charging

Product Name: Golf Laser Rangefinder

REVASRI Model: H3D

Ranging Display Mode: Transmissive LCD display in the field of view

Ranging Error: ±1Yard/M

Ranging Scope: 5-600/1000 Yards

Size: 96*34*67mm/3.78*1.34*2.64inch

Unit: Y (yard)/ M(meter)/F (feet)

Weight: 182g/6.42ounce

Working Temperature: -20~50℃

REVASRI 5-600/5-1000 Yards Golf Laser Rangefinder with Slope Compensation Flag Lock Vibration and Magnet Range Finder for Golfing

Precautions:

1.Do not measure through the glass from inside the room, the glass will refract all the resulting in no data for the measurement.

2.Rain, fog and dusty weather will affect the measurement.It will affect the farthest measuring distance of the rangefinder.

3.If you have any questions, please send us a message and we will do our best to solve the problem for you,thanks.

Function

1. Unit:Yard (Y),Meter (M) & Foot(F),default unit is Yard (Y).

Unit switching method:Short press the M button to switch the unit. You can see the unit switching through the eyepiece.

2.How to turn off your device？

No operation after 30 seconds, power off.

3. Mode:

Mode1:Straight line distance measurement (Turn off the slope switch ,applied to tournaments)

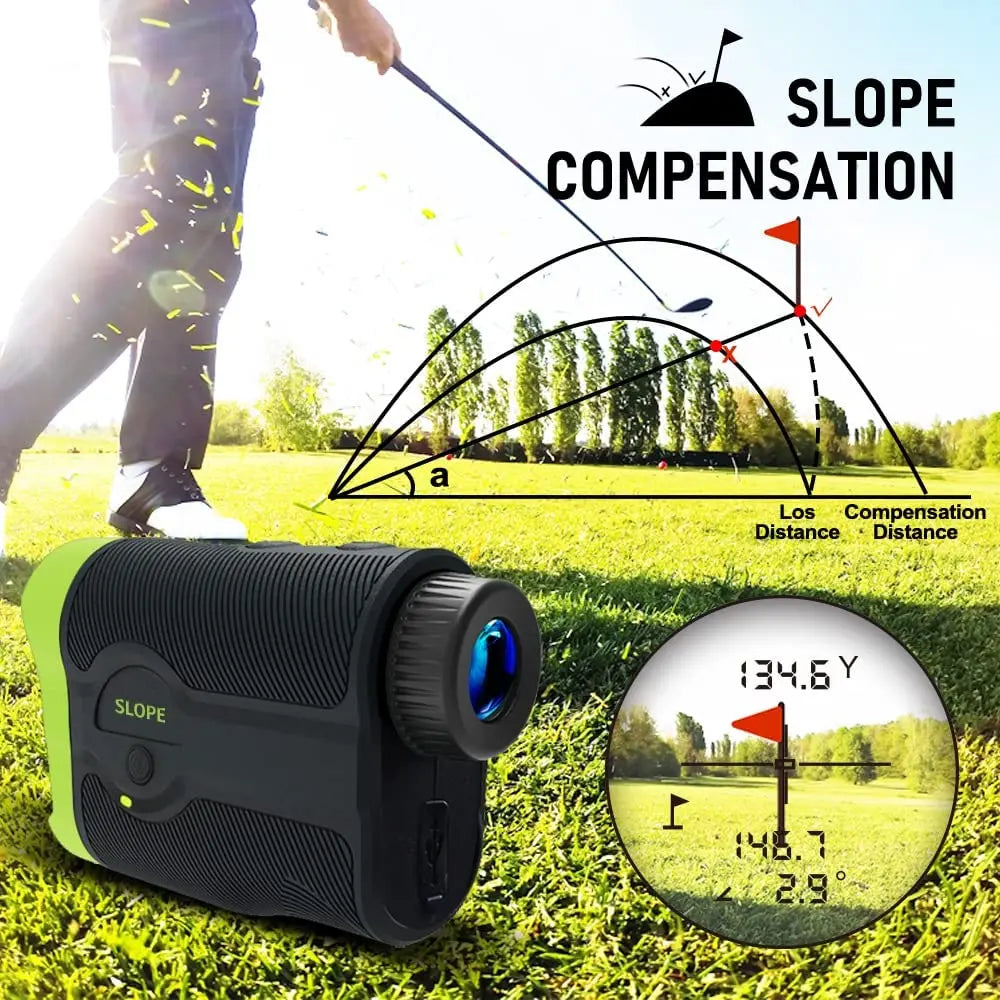

Mode2:Golf Distance Compensation Mode(Turn on the slope switch,in this mode angle, sight of line distance and golf compensation distance are displayed.)

4. About flagpole lock and vibration

Under both modes, there are scan, flagpole lock and vibration functions.

How to lock the flag？

Long press the Power button to enter the scanning mode(Aim at the slope/background behind the flagpole). Move Target Indicator from background to flagpole slowly. The flagpole is locked successfully, the rangefinder vibrates and displays the measurement data.

5.Magnetic:Can be attached to the Golf cart, easy to carry.

Answers to Frequently Questions

Q1:Why can't I get a reading？

A:The minimum range is 5 yard. If you use it in small rooms or through glass or the distance is out of it's max range, it does not show distance.

Q2:Why the reading seems not as accurate as usual sometimes?

A:Rain, fog, strong light, heavy dust may influence the transmission of laser to cause the problem. For small object, make sure you aim at the target not something in the background.

Q3:How to adjusting the Focus?

A:Manual Focusing Eyepiece.
